neolink AC1200 Dual Band Access Point



Long-Range 802.11ac Wave 2 Dual-Band

Cloud Managed Gigabit PoE Access Point

1200 Mbps WiFi

 2.4 GHz / 5 GHz 802.11ac Wave 2 Dual-Band

Gigabit PoE

 10x the speed of 10/100 Fast Ethernet

Up to 170m WiFi Range

 Long-Range Omni-Directional Antennas

Cloud Management

 Remotely configure, check status, Web/APP & more


Secure Server and Payment Providers


Fast Delivery Options


Buy with Confidence with our Returns policy


2.4 GHz data rate: 300 Mbps

5 GHz data rate: 867 Mbps

1x 802.3at PoE Gigabit LAN Port

WiFi Standards: 802.11 ac/v/r/k/n/g/b/a

Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2)


Zero Wait DFS

Max SSID: 2.4 GHz: 8, 5GHz: 4

Antenna: 2 x 4 dBi

2.4 GHz Max.TX Power: 26 +/- 1.5 dBm

5 GHz Max.TX Power: 26 +/- 1.5dBm

Beamforming supported

VLAN: 802.1Q & SSID to VLAN mapping

WMM: Voice, Video, Best Effort, and Background

Guest Traffic Isolation

Software Watchdog

Power Save mode

Max. Concurrent Clients: 256

Mounting: Wall/Ceiling (kits included)

Protection: Lightning =6kV, ESD, Air discharge: ±8kV, Contact discharge: ±4kV

Cloud Management: Configuration, Status, Web/APP & more

Operating Temperature: -10°C ~ 45°C (14F ~ 113F)

Power method: 802.3at PoE or 24V Passive PoE

Power supply: 24V Passive PoE Gigabit Injector (included)

Power consumption: <11.5W

Dimensions (W x D): 176 x 43.5 mm


Specific References

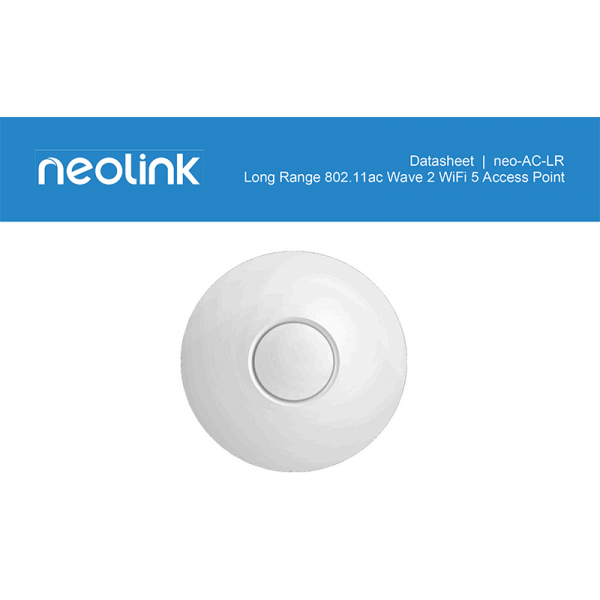

neolink Dual Band Acees Point

Download (120.23KB)
